PRODUCTS

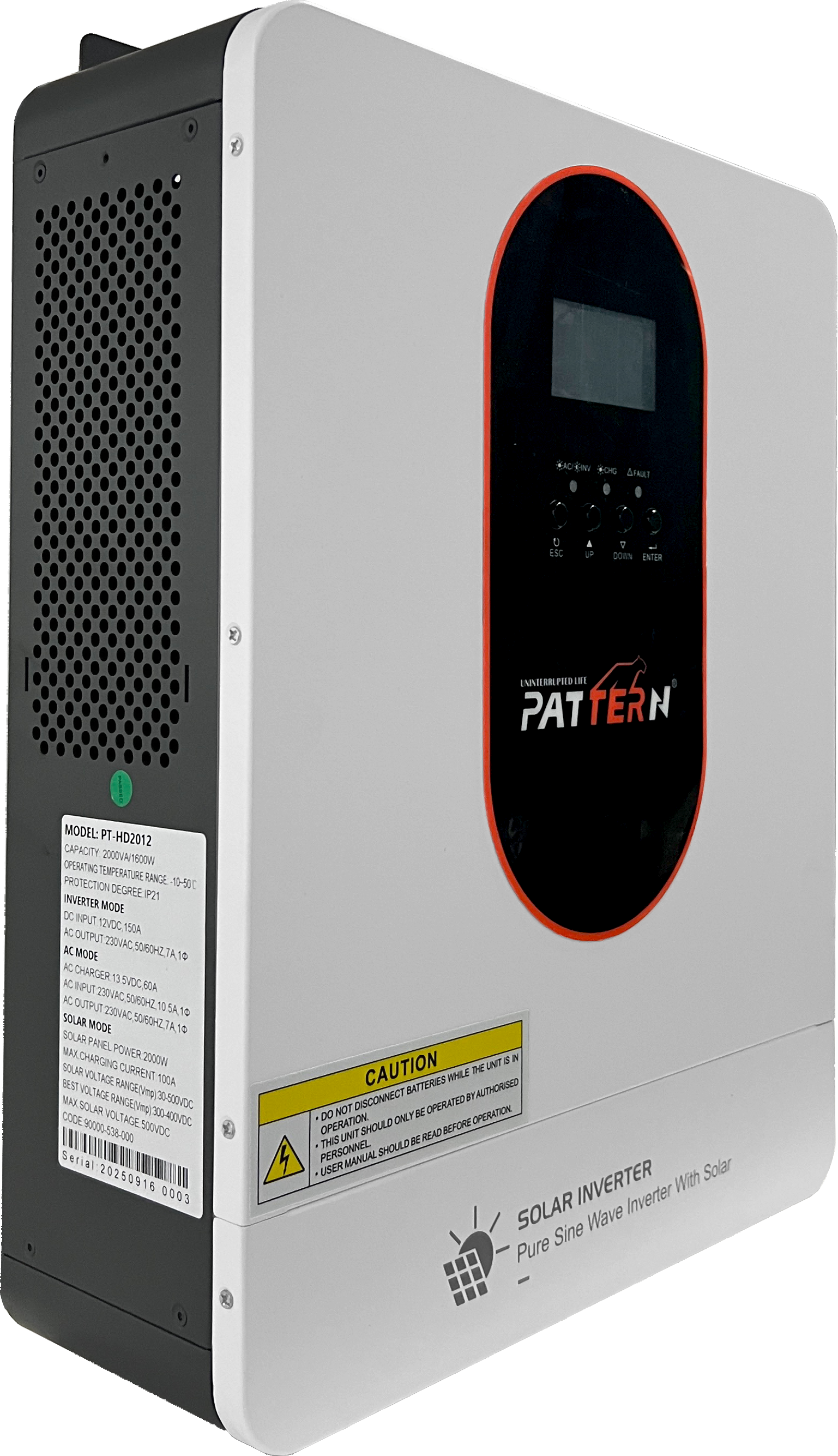

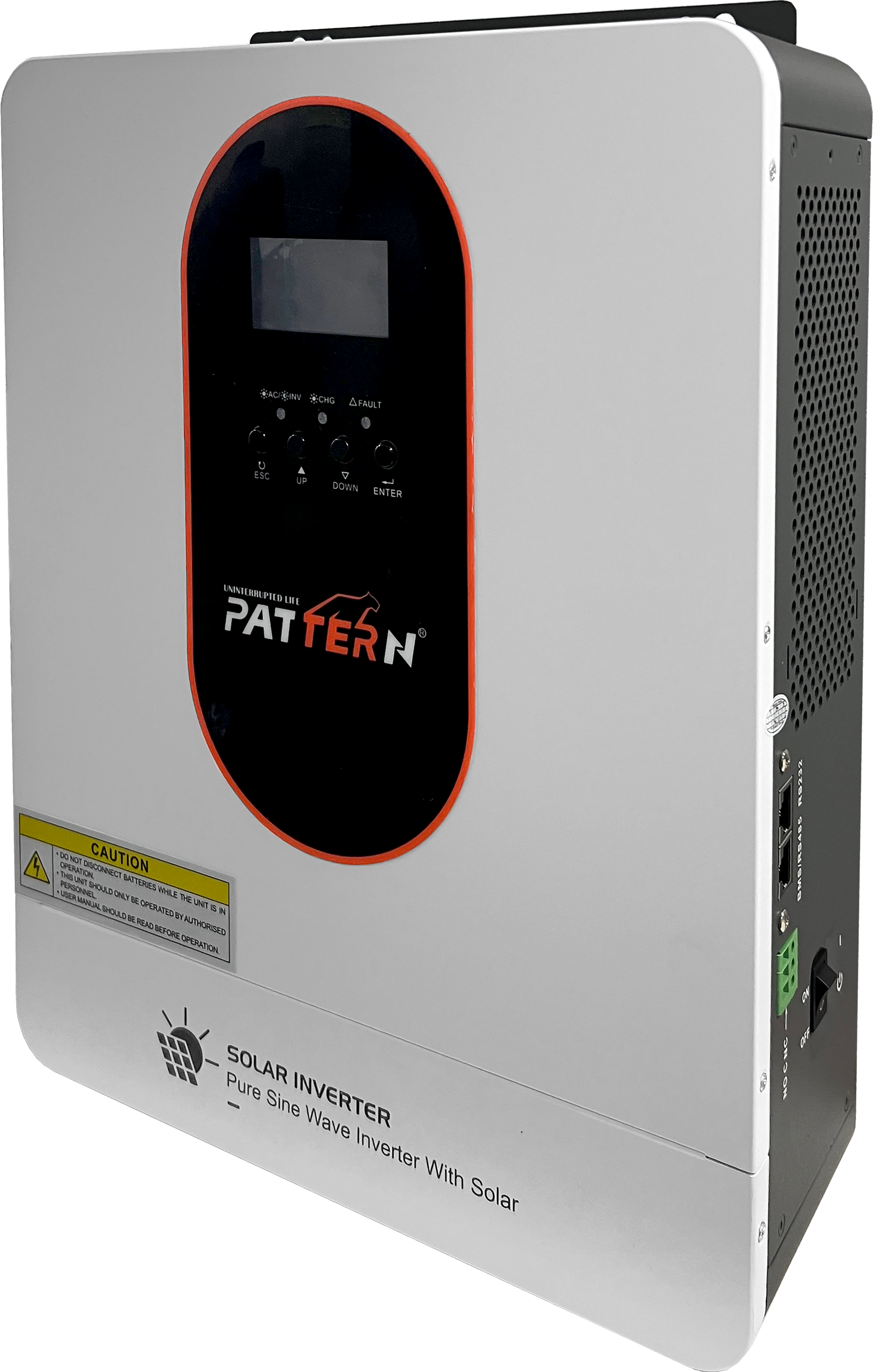

1.6kW/2kw/3kW High Frequency Hibrid Solar Inverter with MPPT charger

Pattern Pure sine wave Inverter
MPPT Efficiency max 98%
Optional built-in MPPT/PWM30-60A controller
DC Start & Automatic Self-Diagnostic Function
Automatically send signal to start generator
High efficiency design for optimized battery performance
Selectable charging current based on applications
lead acid battery/Lithium battery
BMS function for lithium battery

Description

MODEL:1.6kW/2kw/3kW high frequency Hibrid solar inverter with MPPT charger
Input Formation: Single Phase
AC INPUT: 220/230/240VAC
INPUT VOLTAGE RANGE: 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode)
Frequency: 50/60hz±0.1%
Output wave: Pure Shine wave
Peak Power: 3200W/6000W
Rated Voltage: 12V/12V/24V
Peak Efficiency: ＞95%

Battery:
Rated Voltage: 12VDC/12VDC/24VDC
PV Charging Method: MPPT

PV input & Charging
Max Pv Input: 2000W/3000W
MPPT Tracking Range: 30-500VDC
Max Pv input Voltage: 500VDC
Max Pv charge current: 100A
Max Ac Charge Current: 60A
Max Charge Current: 100A

Communication & Display
LCD: Can display operating mode/load/input/output
Communicate：RS485 with Lithium Battery BMS Communication
RS232

Operating Temperature: -10°to +50°

Warranty period: 2 Years
