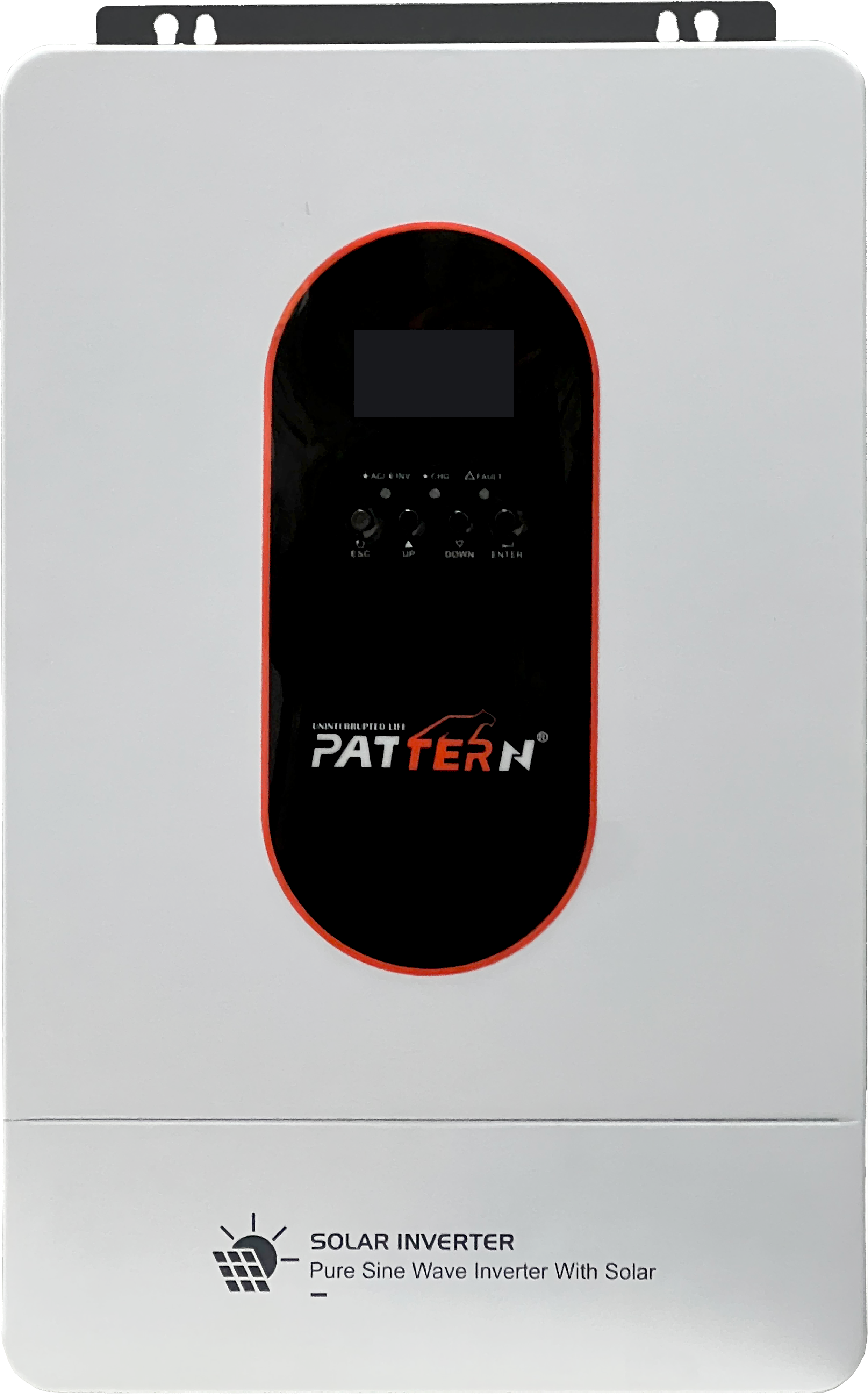

1.5kw Inverter Transformer Base Low Frequency(MPPT Optional)

Categories Inverter, Transformer Based Low Frequency Inverter

Pattern Pure sine wave Inverter
MPPT Efficiency max 98%
Optional built-in MPPT/PWM30-60A controller
DC Start & Automatic Self-Diagnostic Function
Automatically send signal to start generator
High efficiency design for optimized battery performance
Selectable charging current based on applications
lead acid battery/Lithium battery
BMS function for lithium battery

Description

MODEL: 1.5KW 12V
AC INPUT: 220/230/240VAC±5%
INPUT VOLTAGE RANGE: 90-280VAC±3V(Normal Mode)
Frequency: 50/60hz±0.1%
Output wave: Pure Shine wave
Output Power: 3000VA 800W
Peak Efficiency: ＞95%

Battery Charging
Battery Model Output Voltage:200VAC±10%(110VAC±10%）
Rated Voltage: 12VDC
Over Charge Protect:(12-14.5)±1% 12V（*2@24V/*4@48V）

PV input & Charging
Max Pv array power: 12V 800W
Pv input Voltage: 12V;PWM 15-50vdc; 24V; PWM 30V-105VDC
Max Pv charge current: 60A
Max Ac Charge Current: 27A
Max Charge Current: 100A
Transfer Time: s10ms(UPS)/s20m(INV)

Operating Temperature: -10°to +50°
Lithium Battery BMS Communication
RS232
Package Size L*W*H(mm):(single)
N.W.: 12.5kg/ G.W: 13.5kg
Warranty period: 24 months
