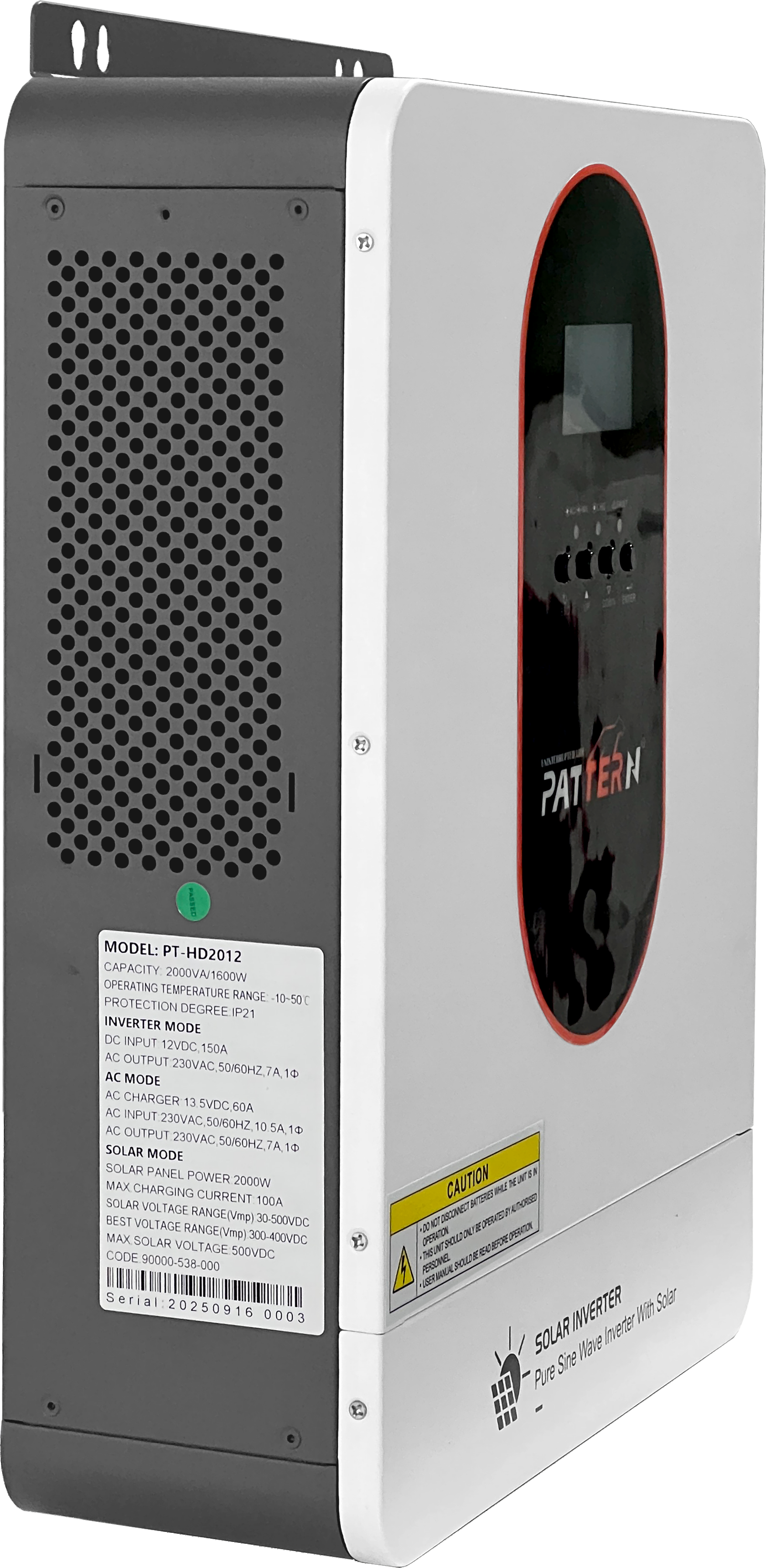

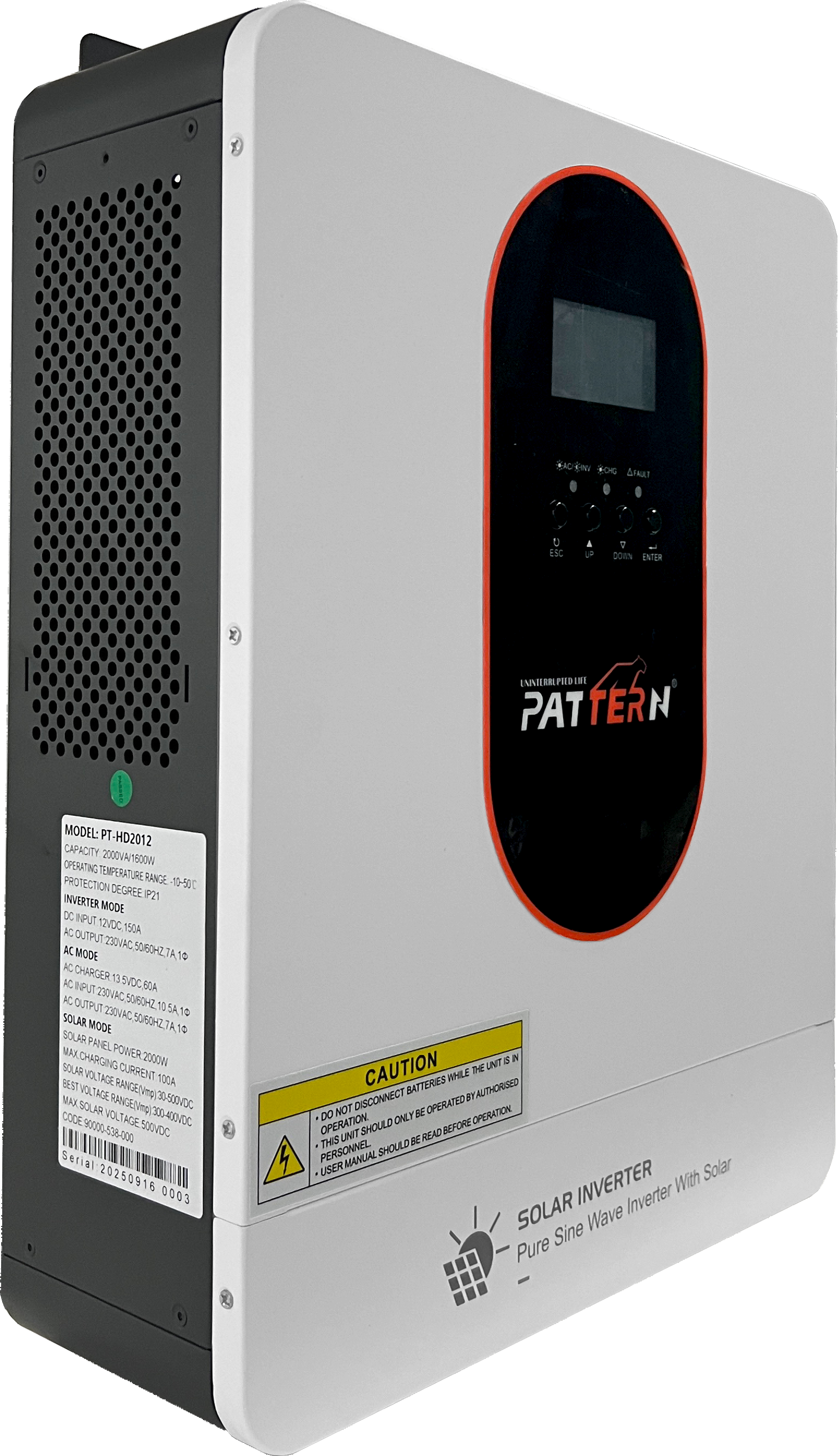

4kW/6.2kW Hybrid Solar Inverter with MPPT

Pattern Pure sine wave Inverter
MPPT Efficiency max 98%
Optional built-in MPPT/PWM30-60A controller
DC Start & Automatic Self-Diagnostic Function
Automatically send signal to start generator
High efficiency design for optimized battery performance
Selectable charging current based on applications
lead acid battery/Lithium battery
BMS function for lithium battery

Description

MODEL:4kW/6.2kW hybrid solar inverter with MPPT charger

Input Formation: Single Phase
AC INPUT: 220/230/240VAC
INPUT VOLTAGE RANGE: 90-280VAC±3V(Normal Mode) 170-280VAC±3V (UPS Mode)
Frequency: 50/60hz±0.1%
Output wave: Pure Shine wave
Peak Power: 4000W/4500W; 6200W/6500W
Rated Voltage: 24V/48V
Peak Efficiency: ＞95%
Peak Power: 8000VA/ 12400VA
Overload Ability:Battery Mode: 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load
Grid Voltage Range: 170-265VAC
Grid Frequency Range: 49-51±1Hz/59-61±1Hz
Output Current: 17.4A/ 26.9A
Battery:
Rated Voltage: 24VDC/ 48VDC
PV Charging Method: MPPT
PV input & Charging
Max Pv Input: 6500W/8500W
MPPT Tracking Range: 60-500VDC
Max Pv input Voltage: 500VDC
Max Pv charge current: 120A
Max Ac Charge Current: 100A
Max Charge Current: 120A
